BIOS

百敖UEFI

内存

2xDDR5内存插槽,支持SODIMM,max 64G

操作系统

 麒麟/统信/Win10/Win11 OS

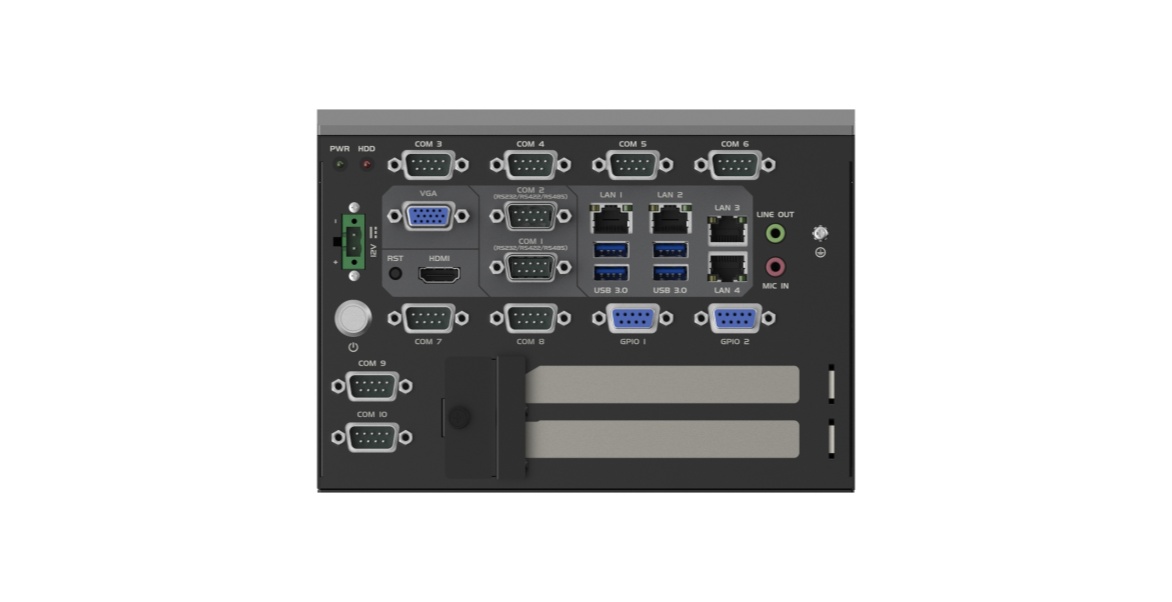

I/O 接口

USB

4xUSB3.0,板内1xUSB2.0 type A接口 for USB Dongle

COM

2xRS232/422/485，8xRS232

GPIO

2xDB9 8bit GPIO

LED

1xPower, 1xHDD

扩展

PCIe/M.2/Mini-PCIe

1个M.2 Key-E for Wifi/BT

1x M.2 B-key 3052，带Micro SIM，支持5G？

扩展卡：1xPCIex8+1PCI

显示

Interface

1xVGA, 1xHDMI

存储

Storage Device

2 x SATA3.0, 1xM.2 SSD NVME(PCIE5.0 X4)

音频

Audio IC

深蕾SN6186

Audio Interface

1xMic-in, 1xLine-out

以太网

LAN IC

3xRTL8111M-CG, 1xYT8531H-CA

Interface

4xRJ45

电源

Power Input

12V, DC-in,支持来电自启

Power Interface

2-Pole Phoenix DC plug in

其它

Watchdog Timer

1 to 255 sec./min. per step

TCM

Z32H330TC-SQN-2701

物理参数

Dimensions

(L*W*H)

200*205*142.5 mm

Mounting

Desk/Wall-mounting

工作环境

Operating Temp.

-10℃~60℃

Storage Temp.

-40℃~85℃

Humidity

95%@40°C（non-condensing）

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
